Machineries

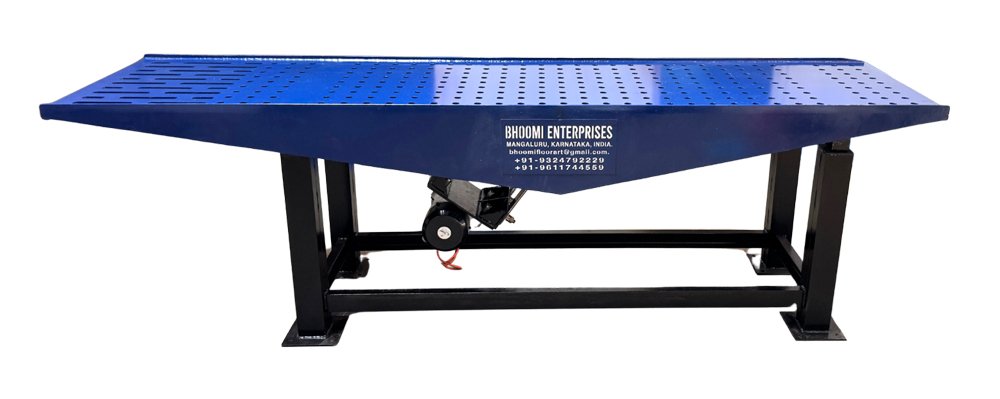

Vibro  Forming  Table  for  Interlocking  Concrete  Pavers  and  Chequered  Tiles

Metal Type Heavy Duty MS. (Industial Grade)
Base Plate Thickness 8mm
Motor Brand Sharc / Deep
Type Of Vibration Motor 2 HP / 3 Phase / 3000 RPM, F Class Heavy duty, With Twin Shaft And Manually Adjustable, Independent Weight On Both Sides
Dimensions of Vibro forming Table Length - 3000mm (Approx.), Width - 800mm (Approx.) Height / 850mm (Approx.)
Movements Of Moulds In Vibro Table Electric motor Vibration With Manual Intervention
Type Of Damper Used Inverted U-Type Rubber Bush
Weight of each Table 430Kg. ( Approx.)
Fabrication and Accessories description
  • 100 mm x 100 mm box type Leg with 10 mm square plate in bottom for Foundation Assembly.
  • Rubber bush fitted with 5/8” TVS Bolts and Nut
  • Vibrator assemply fitted with 8 Nos. 6 mm S.S.Spring plate for smooth vibration with lesser noise.
  • Vibrator mounted with 5/8” TVS Bolt, Spring washer and Checknut of nylon nut for strong grip.
  • Base plate perforated with Laser cut of U shape profile in the feeding zone and 25 mm diameter Round hole for easy maintance and cleaning.

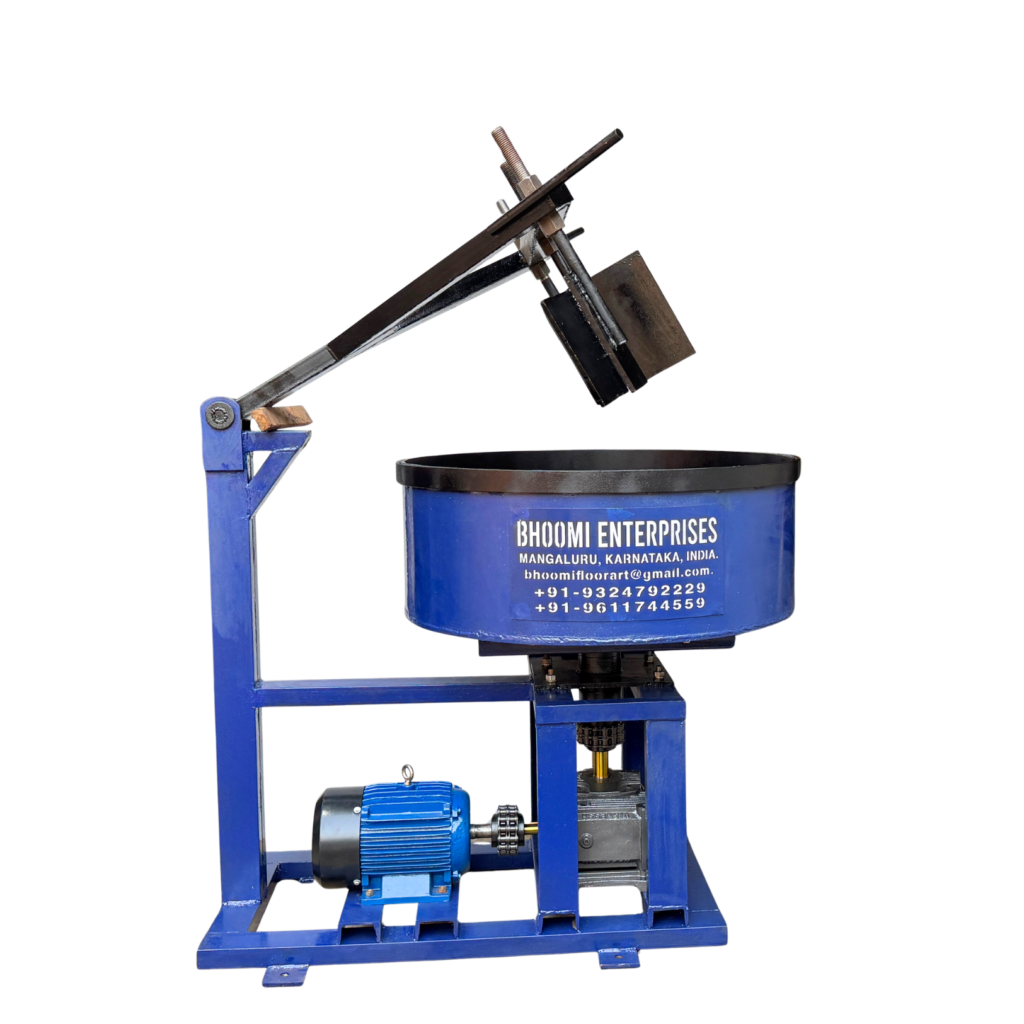

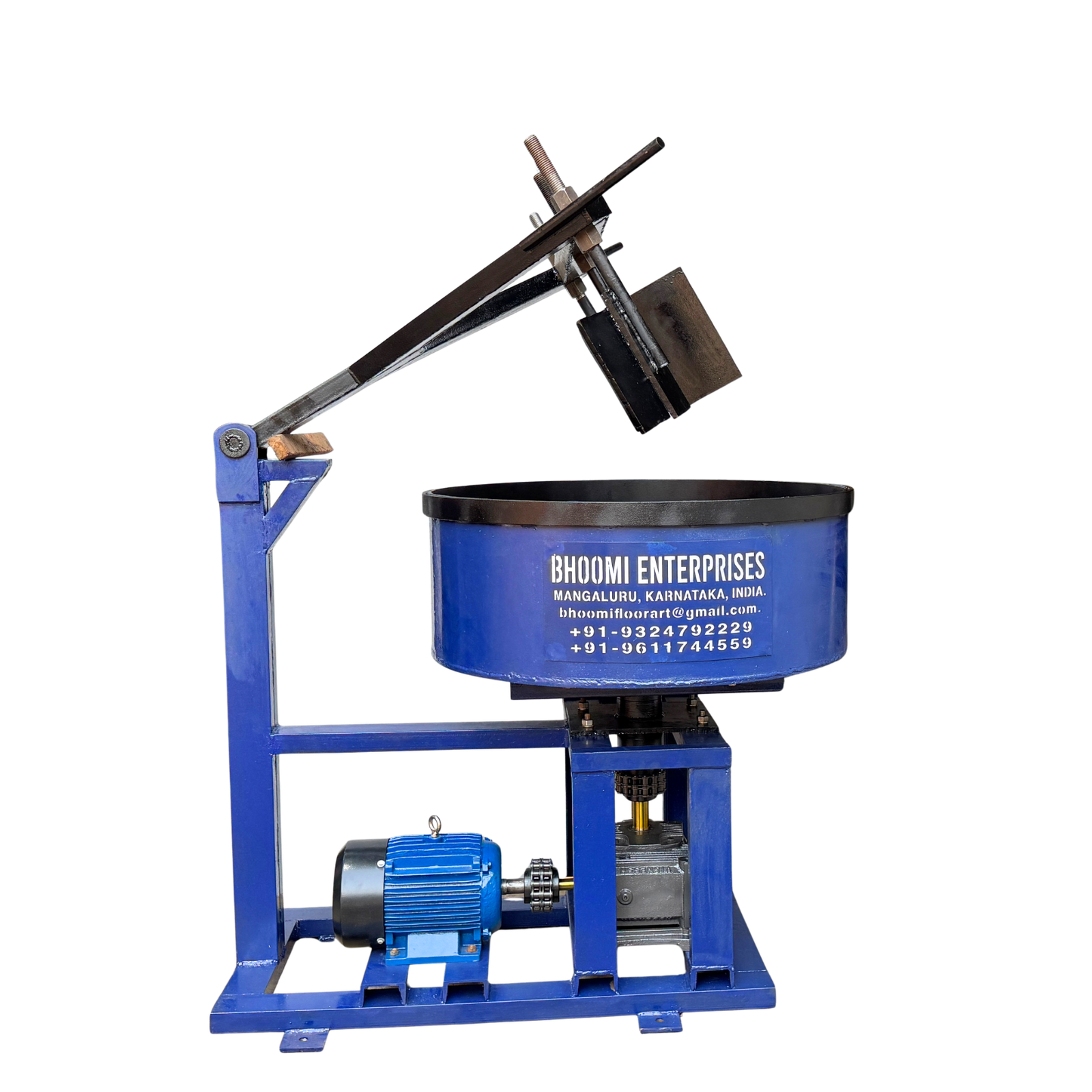

COLOUR CONCRETE MIXER
Metal Type Heavy Duty MS. (Industial Grade)
Base Plate Thickness 8mm
Motor Brand Sharc / Deep
Type Of Induction Motor and Gear Box

3 HP / 3 Phase / 1440 RPM, F Class Heavy duty.

Gear Box A-287 with 40:1 Ratio
Dimensions of Hoppeer Dia-800 mm Height : 300 mm
Weight of the Mixer 300 Kgs. ( Approx.)
Mixing Capacity Mixer of Colour concrete with 25 kgs, cement batch.

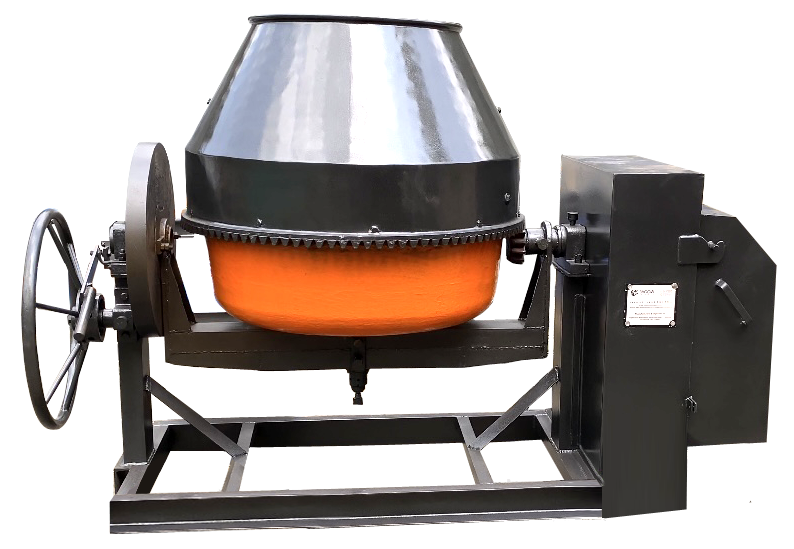

CONCRETE MILLER

Batch Capacity
50 Kgs. ( Full Bag ) Cement batch
Power 3 HP Electric Motor (3 Phase)
Chassis Heavy Duty Robust Steel Chassis
Mixing Drum Speed 20-23 RPM
Material Cast Iron
Cone & Hopper Mild Steel 3mm
Bearing & Chain SKF/ARB/Others
Mixing Time 180 Second Approx.

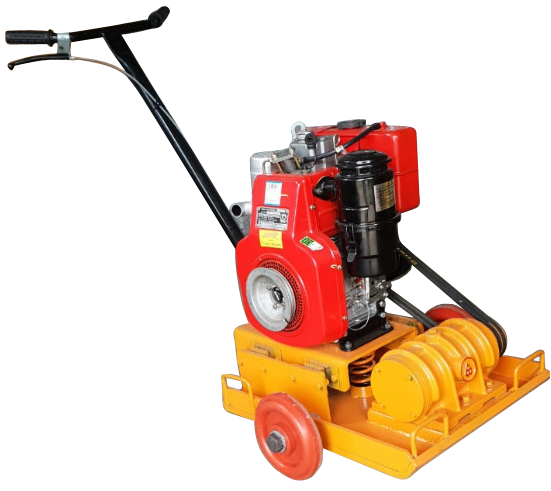

EARTH RAMMER / PLATE COMPACTOR
Capacity
 5-6 Tonne
Plate Thickness 16 mm
Driven by 5 HP Greaves Diesel Engine / Forward Drive
RPM 3600
Mixing Drum Speed 20-23 RPM
Other specifications
  • Heavy Duty clutch shoe.
  • TVS Brand Rubber mount.
  • Fenner Brand Belt
  • Total Wt. : 155 kgs.

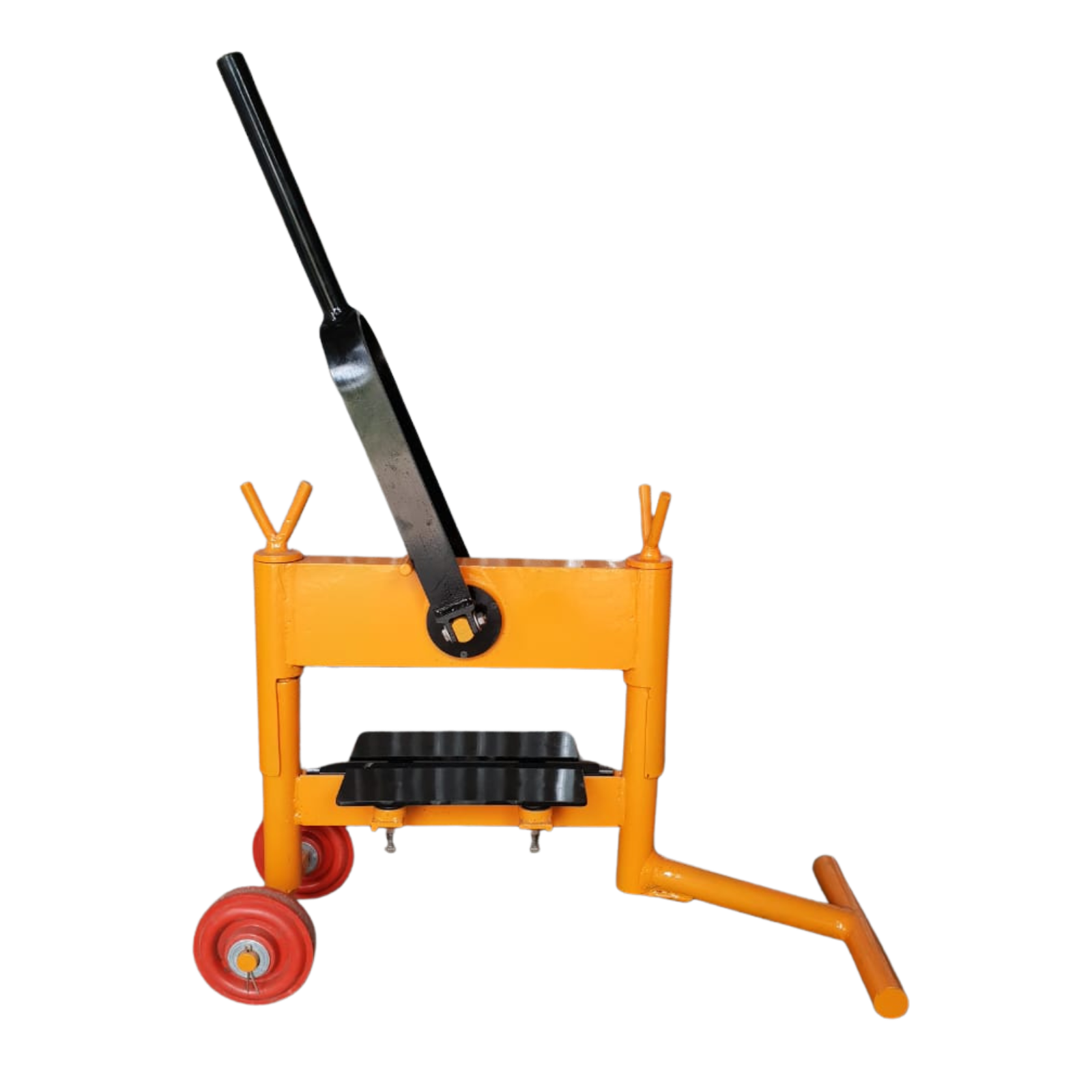

BLOCK CUTTER

Specification
  • Lenghth : 360 mm
  • Width : 280 mm
  • Thickness 200 mm
  • Blade length : Top 360 mm
  • Blade Length : Bottom 400 mm
  • Weight : 45 kgs.

VIBRATING TABLE FOR COMPOUND WALL AND PILLARS
Metal Type
 Heavy Duty MS. (Industial Grade)
Base Plate Thickness 4 mm
Motor Brand Sharc / Deep
Type Of Vibration Motor 1 HP / 3 Phase / 1 Phase / 3000 RPM, F Class Heavy duty, With Twin Shaft And Manually Adjustable, Independent Weight On Both Sides
Dimensions of Vibrating Table Length - 1800mm (Approx.) Width - 800mm (Approx.) Height / 600 mm (Approx.)
Movements Of Moulds In Vibro Table Electric motor Vibration With Manual Intervention
Type Of Damper Used Heavy duty Spring
Fabrication and Accessories description
  • 100 mm x 50 mm C type Leg with 8 mm square plate in bottom for Foundation Assembly.
  • Vibrator mounted with 12 mm TVS Bolt, Spring washer and Checknut of nylon nut for strong grip.
